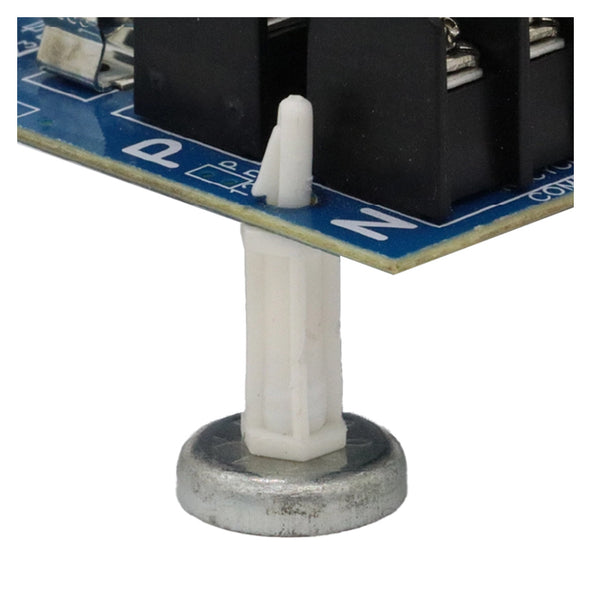

The Magnetic Standoff Kit PCBM100 is a versatile mounting solution for PCB installation, control panels, and electronic enclosures. Using strong neodymium magnetic mounts and bayonet snap-lock standoffs, the kit allows technicians and panel builders to install, remove, reposition, and access circuit boards without permanently modifying the enclosure.
With 10 lb tested pull strength per magnet, the system provides a secure mounting solution while making future repairs and hardware changes significantly easier. It can also help reduce costs by allowing existing control panels to be modified or reconfigured instead of requiring an entirely new panel build.
Quick & Flexible PCB Installation
The magnetic mounting system makes it easy to add hardware to an existing control panel and reposition components when layouts change. The bayonet snap-lock standoffs provide a convenient way to secure PCBs while maintaining consistent mounting height and allowing quick access for service and repairs.
The kit includes enough hardware to mount up to three boards.
Key Features:
- Magnetic PCB mounting and standoff kit
- 10 lb tested pull strength per magnet
- Strong N35M neodymium magnets

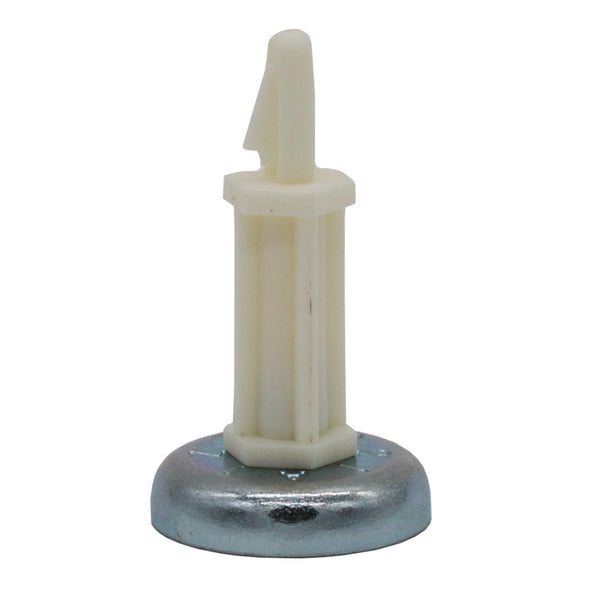

- Bayonet snap-lock PCB standoffs
- Allows quick PCB installation and removal
- Makes repairs and service access easier
- Allows hardware to be repositioned without rebuilding the entire panel
- Suitable for control panels and electronic enclosures
- Cost-effective alternative to permanent mounting solutions
- Hardware included for mounting three circuit boards
Specifications:
-
Part Number: PCBM100
-
Magnet Type: N35M neodymium
-
Magnet Size: 3/4" / 19 mm
-
Magnet Pull Strength: 10 lbs
-
Mounting Hole Size: .193" / 4.9 mm
-
PCB Support: Screw and lock
-
Standoff: HHCBS-12, 0.75", V-0 natural
-
Screw: 6-32 × 3/8" Phillips flat-head, thread-cutting
-
Countersink: 100°
-
Board Capacity: Hardware for 3 boards
Kit Includes:
- 12 × Neodymium magnets
- 12 × Bayonet snap-lock standoffs
- 12 × 6-32 × 3/8" Phillips flat-head screws
The PCBM100 Magnetic Standoff Kit is an excellent choice for control panel builders, electronics technicians, PCB installers, and service professionals who need a secure but easily removable mounting system for electronic boards and components.
