The Morley ABC Switcher Selector Combiner is a versatile passive signal-routing pedal designed for guitarists, multi-instrumentalists, and performers who need to switch between multiple instruments, amplifiers, or signal paths. Its flexible three-channel configuration allows you to route one input to three outputs or reverse the setup and combine three inputs into one output.
Whether you're switching between several guitars, selecting different amplifiers, running multiple amps simultaneously, or sending an additional signal to a mixing console, the Morley ABC provides a simple and practical solution.
Flexible Signal Routing
The ABC can operate in two primary configurations:
-

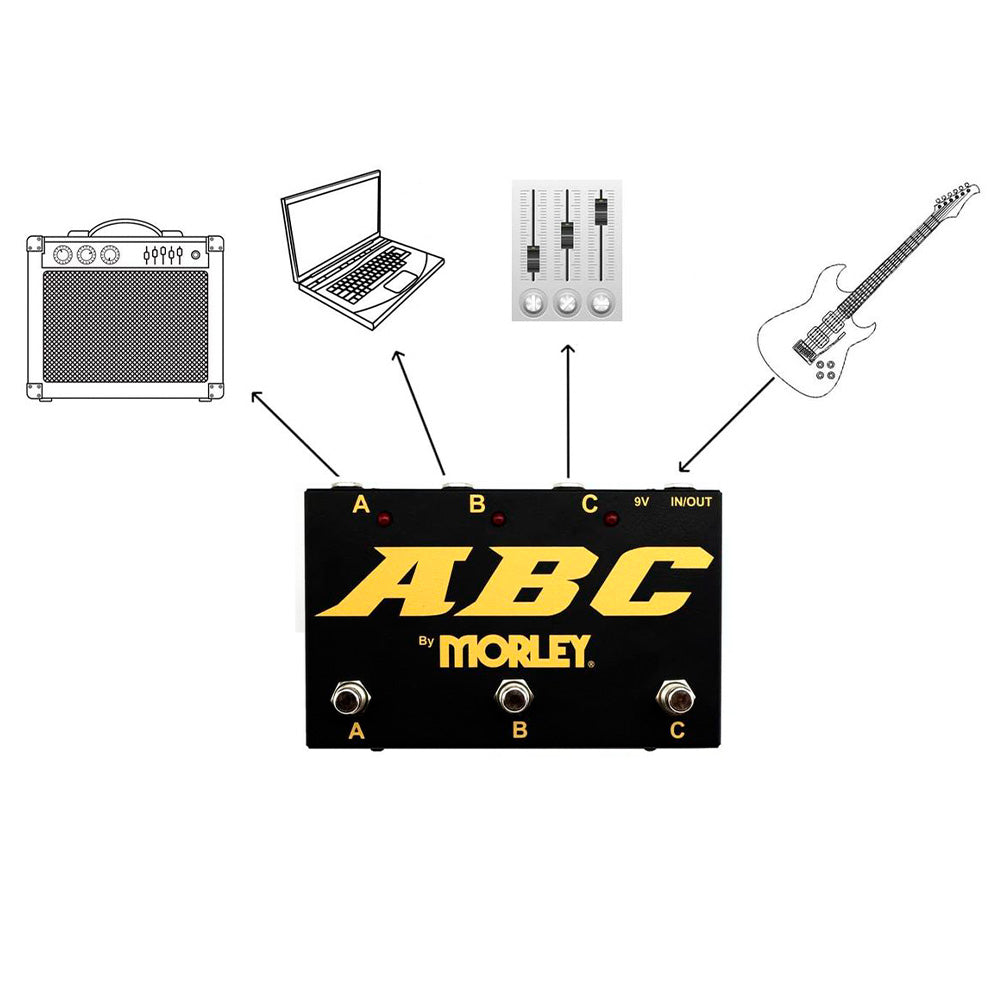

1 input → 3 outputs: Select between up to three amplifiers or send the signal to multiple destinations simultaneously.
-
3 inputs → 1 output: Connect multiple instruments and switch between them without repeatedly unplugging cables.
Each channel has its own bypass switch, while the built-in LEDs provide a quick visual indication of which channels are active.
Passive Operation
The Morley ABC uses a completely passive signal-routing design, so it can function without external power. Power is only required for the indicator LEDs, helping conserve battery life when visual status indication is not necessary.
The pedal can be powered by a standard 9V battery or 9V DC power supply.
Key Features:
- ABC switcher, selector, and combiner
- Route 1 input to 3 outputs
- Route 3 inputs to 1 output
- Switch between multiple instruments
- Select or combine multiple amplifiers
- Run up to three amps simultaneously
- Additional output can be used for connection to a mixer or PA
- Individual bypass switches for each channel
- LED indicators show active channels
- True Bypass
- Passive signal-routing design
- Works without power when LEDs are not required
- 9V battery or standard 9V power supply operation
- Rugged cold-rolled steel construction
- Suitable for live performance, looping, and studio setups
Technical Specifications:
-
Model: ABC-G
-
Type: Passive A/B/C switcher, selector, and combiner
-
Routing: 1 input / 3 outputs or 3 inputs / 1 output
-
Bypass: True Bypass
-
Power: 9V battery or 9V DC power supply
-
Current Draw: 2 mA
-
Construction: Cold-rolled steel
-
Dimensions: 6.63" L × 4.38" W × 2" H
-
Warranty: 1 year
Important: The Morley ABC is not intended for use with powered speaker lines.
The Morley ABC Switcher Selector Combiner is an excellent choice for musicians who need a simple, reliable way to manage multiple instruments and amplifiers without adding unnecessary complexity to their signal chain.
